Water Treatment Tanks Residential / Light Commercial
Description
Description
APPLICATIONS
- Residential/Light Commercial Softening
- Residential/Light Commercial Filtration
- Portable Exchange Tanks
GENERAL INFO
Pentair® Structural Polyglass Vessels have been the industry standard for quality and performance for over 30 years. Featuring a one-piece, seamless, high-density polyethylene liner and an encapsulated, leak-free engineered polymer inlet, Structural Polyglass Vessels are designed to provide you with years of worry-free performance.
FEATURES | BENEFITS
- For residential and light commercial water softener/filtration applications
- Slim diameter with capacities from 2 to 49 gallons
- 1.25” Dome Port opening available on select sizes for neutralizing applications
- Unmatched strength and chemical resistance
- 10-year warranty for 6” - 13” vessels
- 5-year warranty for 14” - 16” vessels
MATERIAL OF CONSTRUCTION
- Inner shell of high-density polyethylene
- Threaded inlet available in various sizes: 2.5”, 4”, 4.5”
OPERATING PARAMETERS (TANK)
-
Maximum operating pressure – 150 psi
- Maximum operating temperature – 49°C
PENTAIR DESIGN PARAMETERS
- Safety factor – 4:1
- Minimum burst at 600 psi
- Tested to 250,000 cycles without leakage
NSF/ANSI STD. 44 DESIGN PARAMETERS
- Safety factor – 4:1
- Minimum burst at 600 psi
- Tested to 100,000 cycles without leakage

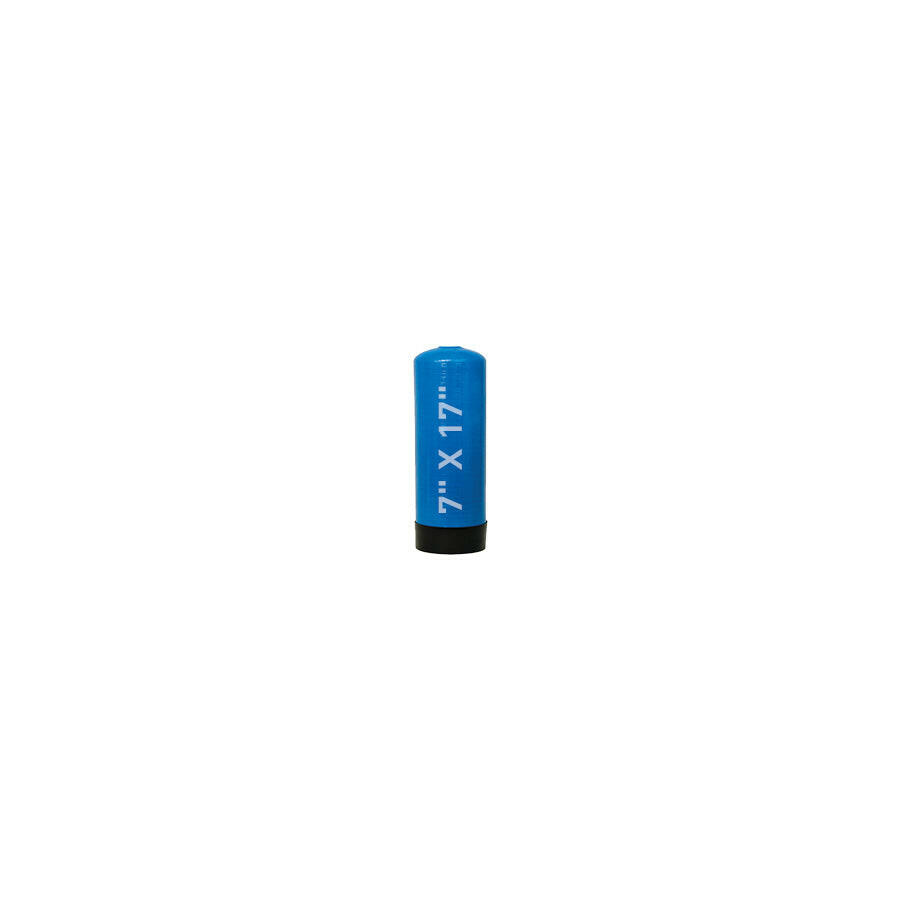

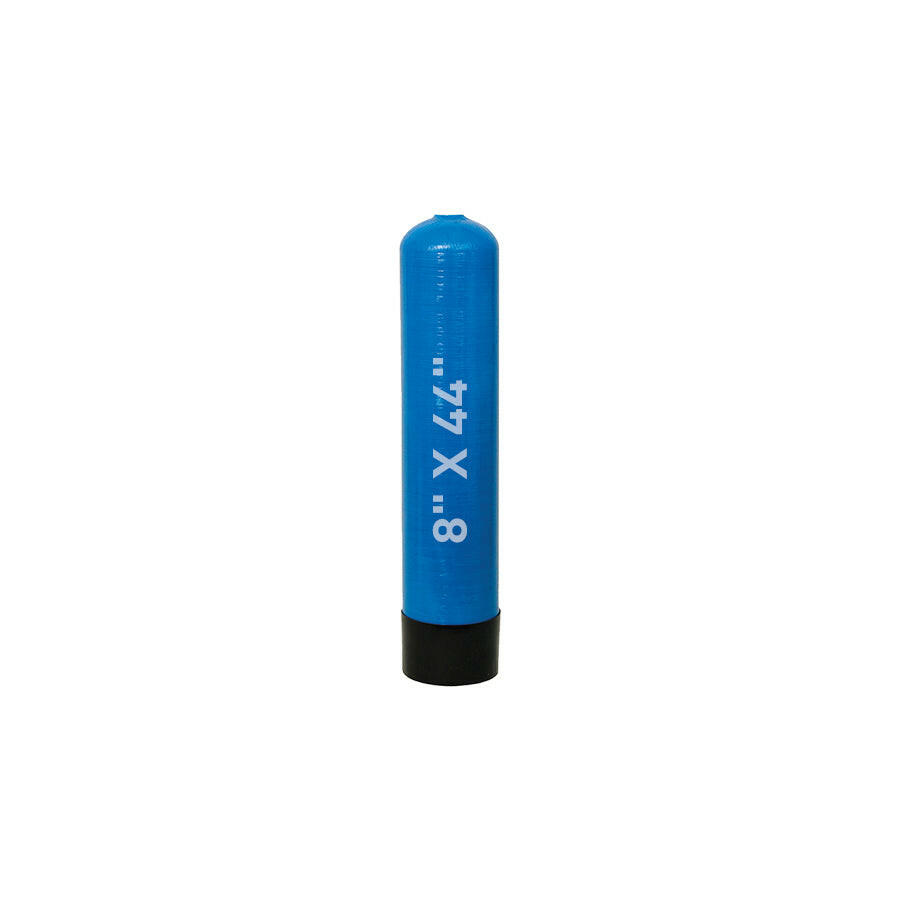

STRUCTURAL® POLYGLASS TANK
Pentair® Structural Polyglass Vessels have been the industry standard for quality and performance for over 30 years. Featuring a one-piece, seamless, high-density polyethylene liner and an encapsulated, leak-free engineered polymer inlet, Structural Polyglass Vessels were designed to provide you with years of worry-free performance.
SPECIFICATIONS
VESSEL
PART NO.
DESCRIPTION
HEIGHT W/BASE INCHES / MM
CAPACITY GALLONS / LITERS
CUBIC FEET
6" DIA.
CH30109
0613 PG 2.5"T
13.4 / 340
1.1 / 4.2
0.15
CH30127
0618 PG 2.5"T
18.8 / 479
1.8 / 6.8
0.24
CH30151
0635 PG 2.5"T
35.7 / 906
3.8 / 14.4
0.51
7" DIA.
CH30190
0735 PG 2.5"T
35.4 / 898
5.2 / 19.7
0.7
CH30213
0744 PG 2.5"T
44.0 / 1120
6.7 / 25.4
0.9
8" DIA.
CH31835
0818 PG 2.5"T
18.7 / 475
3.3 / 12.5
0.44
CH33858
0824 PG 2.5"T
24.4 / 620
4.5 / 17.0
0.6
CH31836
0830 PG 2.5"T
30.3 / 770
5.9 / 22.3
0.79
CH30264
0835 PG 2.5"T
35.39 / 899
6.6 / 25
0.88
CH30286
0840 PG 2.5"T
40.1 / 1018
7.8 / 29.5
1
CH30305
0844 PG 2.5"T
44.5 / 1130
8.7 / 32.9
1.2
9" DIA.
CH30317
0918 PG 2.5"T
18.4 / 467
3.9 / 14.8
0.52
CH30347
0935 PG 2.5"T
35.3 / 896
8.3 / 31.4
1.1
CH30360
0940 PG 2.5"T
39.8 / 1010
9.5 / 36
1.3
CH30367
0942 PG 2.5"T
41.9 / 1063
10.1 / 38.2
1.4
CH30383
0948 PG 2.5"T
48.7 / 1237
11.8 / 44.7
1.6
10" DIA.
CH31357
1018 PG 2.5"T
18.9 / 480
4.9 / 18.5
0.65
CH30460
1035 PG 2.5"T
35.5 / 902
10.2 / 38.6
1.4
CH30491
1040 PG 2.5"T
40.3 / 1024
11.5 / 43.5
1.54
CH30523
1044 PG 2.5"T
44.6 / 1134
13.1 / 49.6
1.8
Consult Factory
1044 PG 2.5"T 1.25" Dome Port
44.9 / 1142
13.1 / 49.6
1.8
CH30546
1047 PG 2.5"T
47.7 / 1211
15.1 / 57.2
2
CH30579
1054 PG 2.5"T
54.4 / 1383
16.4 / 62.1
2.2
Consult Factory
1054 PG 2.5"T 1.25" Dome Port
54.4 / 1383
16.4 / 62.1
2.2
CH31478
1060 PG 2.5"T
61.3 / 1558
18.3 / 69.3
2.45
12" DIA
CH30615
1242 PG 2.5"T
43.0 / 1093
19.1 / 72.3
2.6
CH30617
1242 PG 4.5"T
43.1 / 1095
19.1 / 72.3
2.6
CH30646
1248 PG 2.5"T
49.0 / 1245
20.6 / 78
2.8
CH30647
1248 PG 4"T
49.4 / 1256
20.6 / 78
2.8
CH30666
1252 PG 2.5"T
53.0 / 1346
22.2 / 84
2.97
Consult Factory
1252 PG 2.5"T 1.25" Dome Port
53.0 / 1346
22.2 / 84
2.97
CH30669
1252 PG 4"T
53.4 / 1356
22.2 / 84
2.97
CH32127
1252 PG 4.5"T
53.14 / 1350
22.2 / 84
2.97
13" DIA.
CH30721
1354 PG 2.5"T
54.3 / 1380
27 / 102
3.6
Consult Factory
1354 PG 2.5"T 1.25" Dome Port
54.3 / 1380
27 / 102
3.6
30724
1354 4"T
54.9 / 1394
27 / 102
3.6
14" DIA.
CH30745
1447 4"T
47.0 / 1195
27.5 / 104
3.7
CH32006
1447 4.5"T
47.3 / 1200
27.5 / 104
3.7
Consult Factory
1454 4"T
54.7 / 1388
32.8 / 124
4.4
CH30785
1465 4"T
66.1 / 1679
38 / 144
5.1
16" DIA
CH34368
1633 4"T
34.8 / 885
22.4 / 85
3
CH30864
1653 4"T
55.0 / 1397
40 / 151
5.3
CH30912
1665 4"T
66.2 / 1682
49 / 186
6.6
CH30868
1665 4"T 4"B
78.8 / 2002
49 / 186
6.6
