Under Bench Boiling Tank (Manual) Compatible with Pentair Solaria and Schwan Models

Under Bench Boiling Tank (Manual) Compatible with Pentair Solaria and Schwan Models

FEATURES | BENEFITS

• SAFETY FIRST - Equipped with a built-in child safety lock for peace of mind in family kitchens.
• HASSLE FREE SETUP - DIY installation made easy with all components included—get boiling in no time!
• STYLISH DURABILITY - Crafted from premium stainless steel, this tap adds a modern touch while resisting rust.
• SPACE SAVING DESIGN - Combine hot, cold, and filtered water in one sleek faucet, maximising your kitchen's efficiency.
• INSTANT GRATIFICATION - Enjoy boiling water at your fingertips—perfect for tea, coffee, and quick meals!

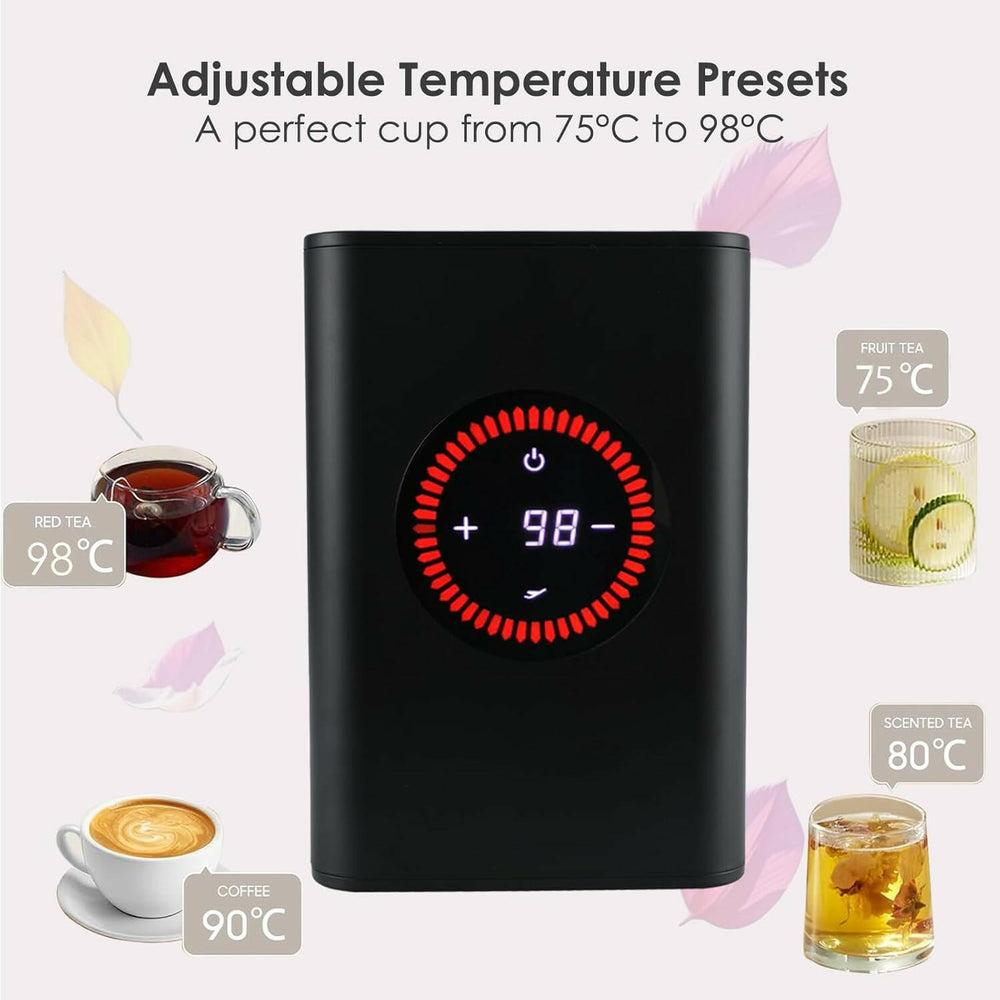

• Supply 98°C near boiling water to your instant boiling taps with temperature adjustable preset temperatures between 75°C and 98°C,to meet your different daily needs of beverages: 75°C for fruit tea, 80°C for scented tea, 90°C for coffee, 98°C for red tea.
• User-friendly inteface with large touch screen display. Preset your boiler simply with a finger tip. The large circle boiling status led indicator. Easy to ready and operate.
• Auto-Reheat when boiling water drop down 5°C lower than preset temperature. Save electricity on energy saving mode, the boiler will auto reheat when temperature is 10°C lower.

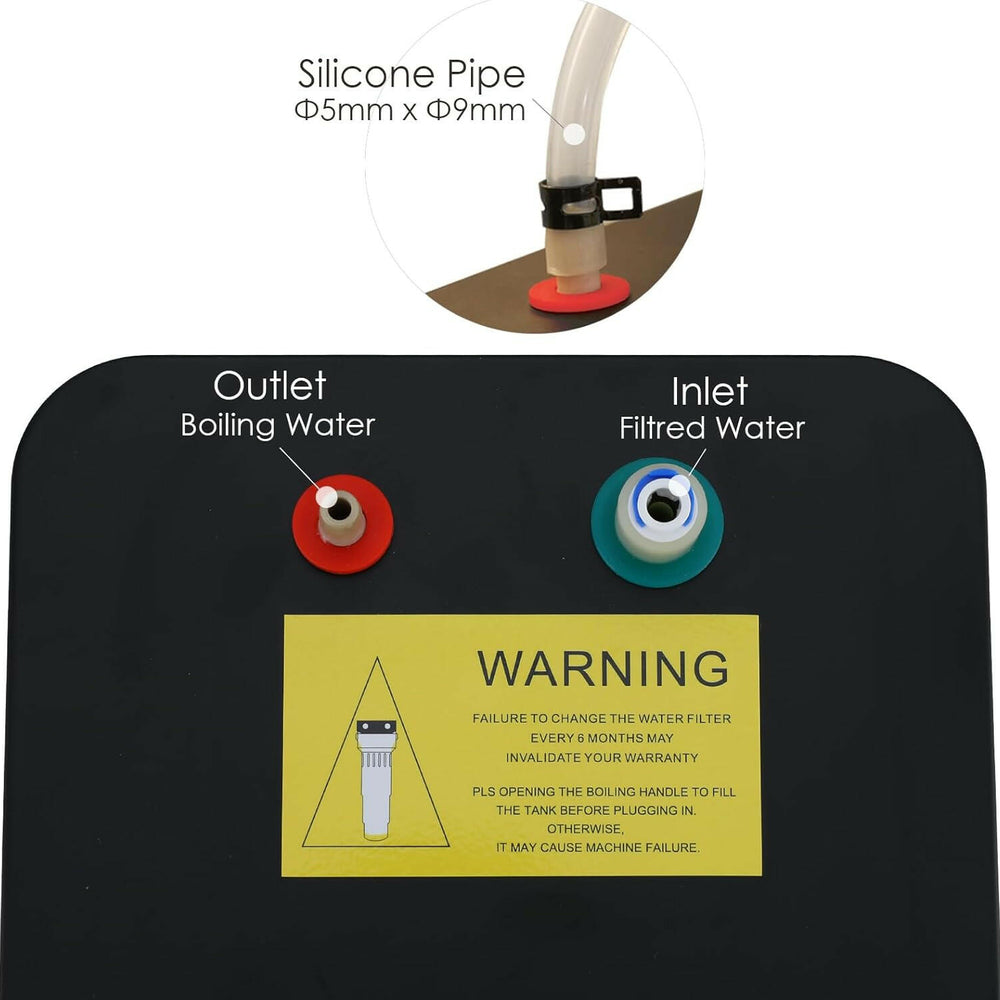

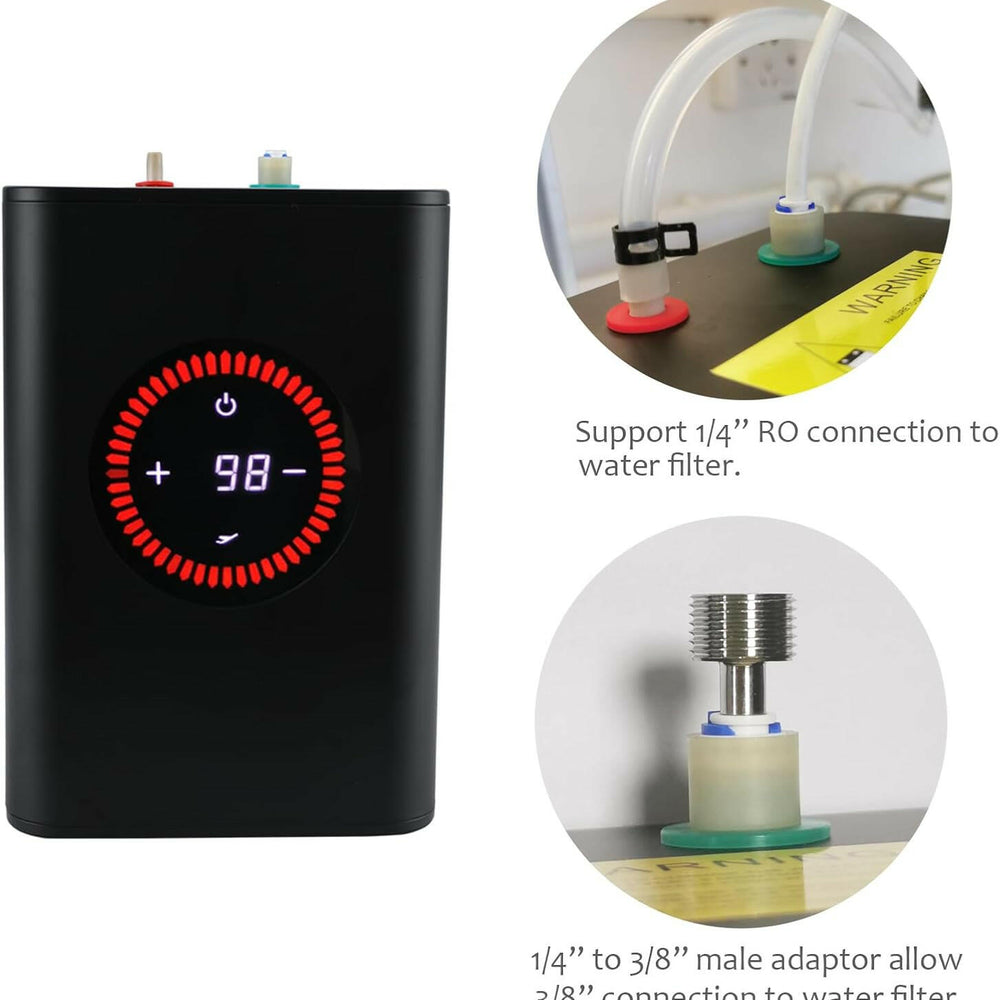

• The boiler works with a anti-scale water filter (not included). The boiler inlet supports fast plug 1/4" connection, as well as G3/8 connection (a 1/4" to G3/8 male adaptor is included) to most of water filters in UK market. The boiler outlet connects to a boiling tap by silicone hose inner diameter 5mm or or G3/8 connection ( adaptor included).

SPECIFICATIONS

Product Code  UBBT-M Filtration (Recommended) Premium KDF/GAC 50, 5 Micron Filtration Heating Capacity 2.4L Temperature Range 75 - 98 degrees Celsius (Adjustable) Power Consumption 1500W Max Operating Pressure 5 Bar Water Connection Size (Cold) Cold Inlet/Outlet 1/4" Push Lock PVC
Hot Outlet 3/8" Silicone Pipe - Tapered Connection (Pressure Fit) Power Requirements Standard 10amp power outlet (Earth Leakage Protected) Max. Recommended Inlet Pressure 500kpa Compatible Tap Combinations Duotap, Fusion Tap





DIAGRAM

Dimensions

PIPEWORK FOR REPLACEMENT

Turn off water supply to the unit and remove faulty boiler

Connect existing cold water supply to the inlet of the boiler using push lock system

Connect existing hot water supply (Silicone Tube) pressure fit to the outlet of the
boiler.

*Note: This is a pressure-less boiler so there is no pressure on this connection only
when the tap is flowing. we have included a zip tie to the package to secure if you feel the fit is loose.

4. Check all connections are secure and restore water supply

OPERATION INSTRUCTIONS

Once connected to the water supply, connect the Boiler unit to power at the wall. Leave the power switch off at this stage (This is important, as if the boiler is turned on before water has run through the unit it does run the risk of burning out the element).

Ensuring all pipes are connected securely, commission the what would be the boiling water button on your chosen tap until ambient water starts to dispense from the end of the faucet (Can take 1-2 minutes).

The boiler has now been primed correctly. Turn on the BOILER by holding down the power button until the lights at the front of the unit illuminate.

Note: If the boiler unit is on, but does not seem to be heating the thermal overload sensor might have activated to avoid the element overheating. This can be reset by inserting a sharp object into the hole in between the 4 screws at the bottom of the boiler. You will hear a "click" once reset

TEMPERATURE ADJUSTMENT

• Internal thermostat is adjustable between 75 - 98 degrees C.

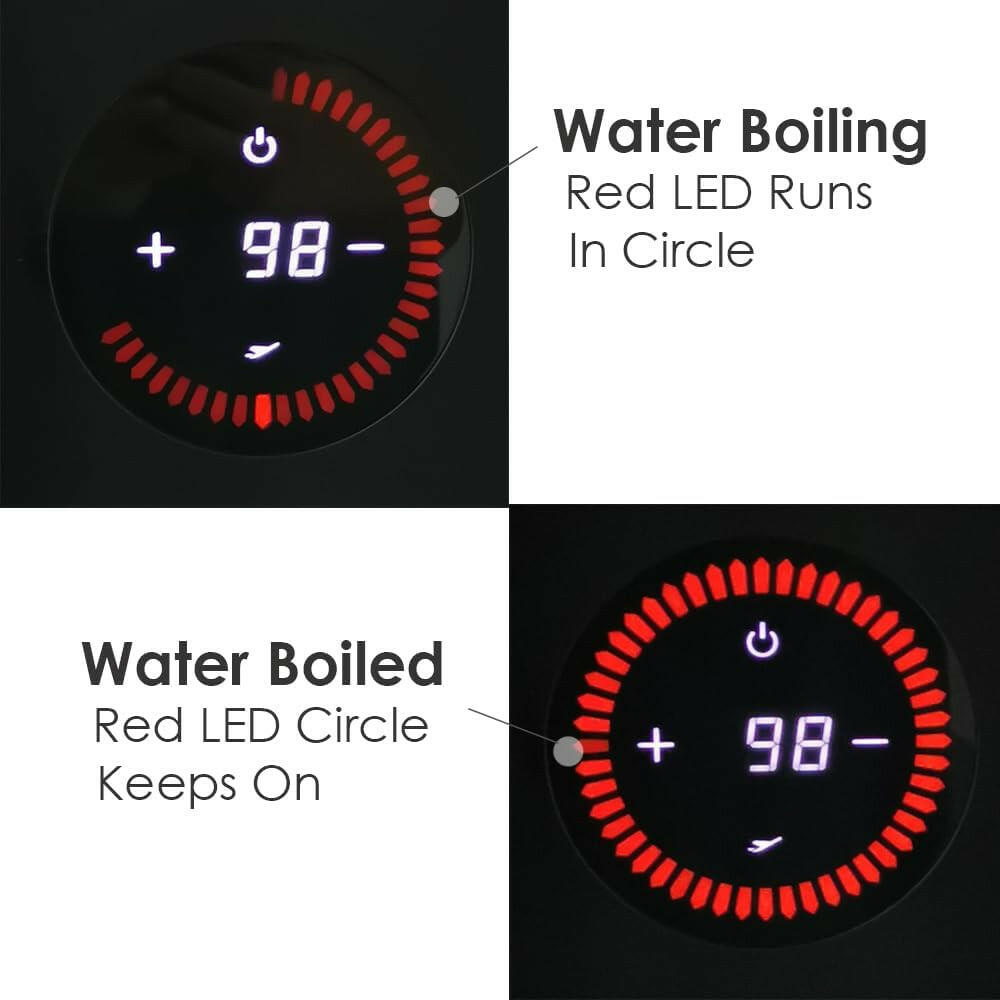

• You can adjust the temperature by pressing the - and + buttons on the front of the Boiler While the unit is heating to the desired temperature the red LED will circulate the display panel .


• Once fully heated all the LEDs circulating the display panel will stay on (stationary).
