Oasis VersaCooler Vandal Resistant Dual Height Wall-Mounted Drinking Fountain

Please Note: Excludes Filter System

APPLICATIONS
Suitable for public buildings, gymnasiums, sports complexes, hospitals, schools, and offices.

GENERAL INFO

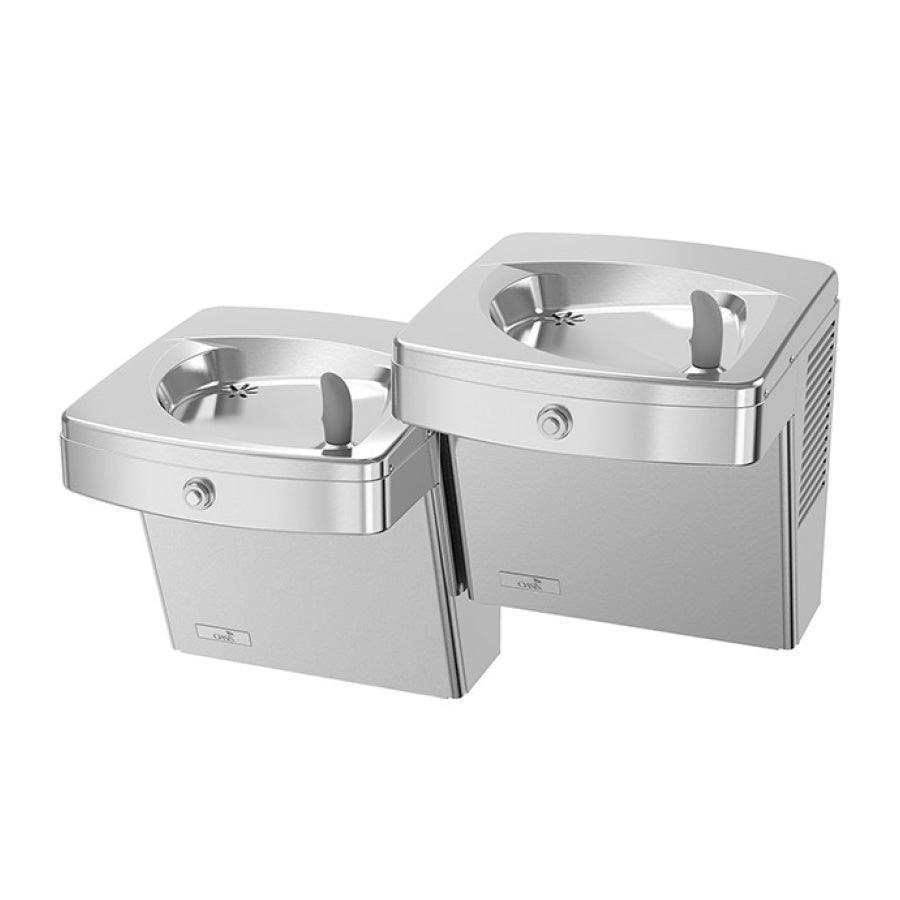

Versacooler PV8ACSLY is a vandal-resistant, dual-height wall-mounted drinking fountain.
It delivers 60 litres per hour of 10°C water at 21°C ambient.
This split-level drinking fountain is manually activated via the vandal-resistant touch-button.
Key Versacooler moulded components include Freshield, a silver-based antimicrobial compound that reduces the growth of micro-organisms and mildew to protect surfaces from discolouration, odours, and degradation.

FRESHIELD
Freshield antimicrobial protection is engineered into key components, specifically moulded for durability.
Utilising a silver ion-based antimicrobial compound, Freshield reduces the growth of microorganisms and mildew, protecting surfaces from discolouration, odours, and degradation—ideal for environments where hygiene is critical.

FEATURES | BENEFITS

• Manually activated vandal-resistant bi-level drinking fountain
• PV8ACSLY delivers 60 litres of chilled drinking water per hour
• Vandal-resistant mechanical front push-button activation
• Built-in 100 micron strainer stops particles before they enter the waterway
• ADA compliant for both adults and children when properly installed
• Waterways are lead-free in materials and construction
• Stainless steel top
• Basin designed to eliminate splashing and standing water
• Water-saver bubbler reduces wastewater by 50%
• Antimicrobial vandal-resistant bubbler keyed into position with flexible guard
• External stream height adjustment
• Heavy-duty galvanized steel frame
• Galvanized steel louver and bottom screen
• Vandal-resistant fasteners
• High-efficiency cooling tank and coil
• Energy-efficient refrigeration system powers ‘ON’ only when in use or if water temp increases during long periods of standby

CERTIFICATIONS / COMPLIANCE
Complies with ANSI A117.1 and ADA
CE compliant (LVD, EMC, RoHS)
ANSI/NSF 61 certified

Specifications:

MODEL CODE: PV8ACSLY

Activation / Filtration / Disinfection:
Mechanical (vandal-resistant touch-button),
Green Filter (optional),
Built-in 100 micron strainer,
Ultra Blu V (optional)

Auto-Off Water Flow: No

Drainage Type: Built-in drain, removable drip tray

Exterior Chassis: Antimicrobial ABS Plastic, Brushed Stainless Steel, Heavy Duty Galvanised Steel

Dimensions (each): 480(H) x 448(W) x 473(D) mm

Net Weight: 38 kg

Power Supply: 220–240V, 50/60 Hz

Cooling Performance: 60 LPH rated capacity & base rate (10°C in 21°C ambient temp)

Full Load Amps: 2.2A

Rated Watts: 450W

Energy System:
Refrigeration runs only when in use or
if water temp increases during long standby

Country of Origin: Mexico

Certifications: ANSI/NSF 61, CABO/ANSI A117.1, ADA, CE (LVD, EMC, RoHS)

Warranty: 1 Year
