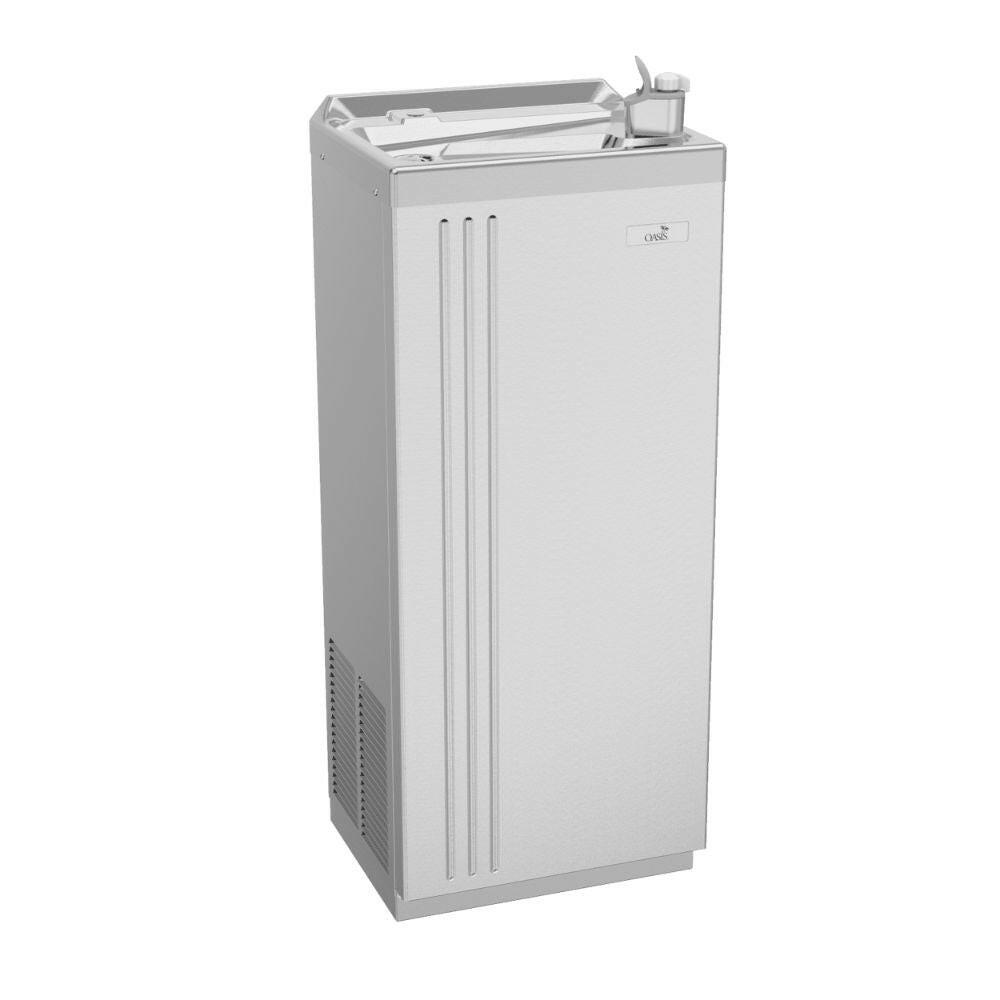

Oasis Manual Floor Free-Standing with Dial-A-Drink Adjustable Bubbler
Description
Description
APPLICATIONS
Suitable for public buildings, gymnasiums, sports complexes, hospitals, schools, and offices.
GENERAL INFO
The PLF8FAY, PLF8FAHY, PLF14FAY, and PLF14FAHY are manually activated, free-standing drinking fountains that provide chilled drinking water. These versatile units feature the innovative Dial-A-Drink adjustable bubbler system and are suitable for public buildings, gymnasiums, sports complexes, hospitals, schools, and offices.
PLF8FAY - Standard model delivering 60 litres per hour of chilled water only.
PLF8FAHY - Enhanced model with both chilled and hot water delivery capabilities.
PLF14FAY - High-capacity model delivering 106 litres per hour of chilled water only.
PLF14FAHY - High-capacity model with both chilled and hot water delivery capabilities.
FEATURES | BENEFITS
Common Features
- Dial-A-Drink adjustable bubbler for personalized water flow
- Waterways are lead-free in materials and construction
- Stainless steel top
- Galvanized steel frame (FA models)
- High efficiency cooling tank and coil
- Refrigerant R-134a or R-290a
- Delivers 10°C chilled water at 21°C ambient temperature
- Free-standing design - no installation required
- Suitable for high-traffic commercial and institutional applications
Model-Specific Features
PLF8FAY:
- Capacity: 60 litres per hour
- Chilled water only
- Ideal for standard-use applications
PLF8FAHY:
- Capacity: 60 litres per hour (chilled water)
- Hot water delivery included
- Ideal for applications requiring both hot and cold water
PLF14FAY:
- Capacity: 106 litres per hour
- Chilled water only
- Ideal for high-traffic areas and heavy-use applications
PLF14FAHY:
- Capacity: 106 litres per hour (chilled water)
- Hot water delivery included
- Ideal for high-traffic areas requiring both hot and cold water
CERTIFICATIONS/COMPLIANCE
Complies with ANSI A117.1 and ADA. Shall comply with all relevant CE directives (LVD , EMC, RoHS). Shall comply with ANSI/NSF 61.MODEL: PLF8FAY
ACTIVATION: Mechanical (Dial-A-Drink Adjustable Bubbler with Flexible Bubbler Guard)
FILTRATION: Green Filter (optional), Built-in 100 micron strainer
DISINFECTION: Ultra Blu V (optional)
AUTO-OFF WATER FLOW: No
DRAINAGE TYPE: Built-in drain
EXTERIOR: Brushed Stainless Steel
CHASSIS: Heavy Duty Galvanised Steel
DIMENSIONS: 1100(H) x 432(W) x 356(D) mm
NET WEIGHT: 43 kg
POWER SUPPLY: 220-240V, 50/60 Hz
COOLING PERFORMANCE: 60 LPH Rated Capacity & Base Rate (10°C in 21°C ambient temp)
FULL LOAD AMPS: 2.5A
RATED WATTS: 320 W
ENERGY SYSTEM: Refrigeration is on only when in use or if water temp increases during long period of standby
COUNTRY OF ORIGIN: Mexico
CERTIFICATIONS: ANSI/NSF 61, CABO/ANSI A117.1, ADA, CE (LVD, EMC, RoHS)
WARRANTY: 1 Year
MODEL: PLF8FAHY
ACTIVATION: Mechanical (Dial-A-Drink Adjustable Bubbler with Flexible Bubbler Guard)
FILTRATION: Green Filter (optional), Built-in 100 micron strainer
DISINFECTION: Ultra Blu V (optional)
AUTO-OFF WATER FLOW: No
DRAINAGE TYPE: Built-in drain
EXTERIOR: Brushed Stainless Steel
CHASSIS: Heavy Duty Galvanised Steel
DIMENSIONS: 1100(H) x 432(W) x 356(D) mm
NET WEIGHT: 44 kg
POWER SUPPLY: 220-240V, 50/60 Hz
COOLING PERFORMANCE: 60 LPH Rated Capacity & Base Rate (10°C in 21°C ambient temp)
FULL LOAD AMPS: 4.7A
RATED WATTS: 820 W
ENERGY SYSTEM: Refrigeration is on only when in use or if water temp increases during long period of standby
COUNTRY OF ORIGIN: Mexico
CERTIFICATIONS: ANSI/NSF 61, CABO/ANSI A117.1, ADA, CE (LVD, EMC, RoHS)
WARRANTY: 1 Year
MODEL: PLF14FAY
ACTIVATION: Mechanical (Dial-A-Drink Adjustable Bubbler with Flexible Bubbler Guard)
FILTRATION: Green Filter (optional), Built-in 100 micron strainer
DISINFECTION: Ultra Blu V (optional)
AUTO-OFF WATER FLOW: No
DRAINAGE TYPE: Built-in drain
EXTERIOR: Brushed Stainless Steel
CHASSIS: Heavy Duty Galvanised Steel
DIMENSIONS: 1100(H) x 432(W) x 356(D) mm
NET WEIGHT: 44 kg
POWER SUPPLY: 220-240V, 50/60 Hz
COOLING PERFORMANCE: 106 LPH Rated Capacity & 60 LPH Base Rate (10°C in 21°C ambient temp)
FULL LOAD AMPS: 2.5A
RATED WATTS: 320 W
ENERGY SYSTEM: Refrigeration is on only when in use or if water temp increases during long period of standby
COUNTRY OF ORIGIN: Mexico
CERTIFICATIONS: ANSI/NSF 61, CABO/ANSI A117.1, ADA, CE (LVD, EMC, RoHS)
WARRANTY: 1 Year
MODEL: PLF14FAHY
ACTIVATION: Mechanical (Dial-A-Drink Adjustable Bubbler with Flexible Bubbler Guard)
FILTRATION: Green Filter (optional), Built-in 100 micron strainer
DISINFECTION: Ultra Blu V (optional)
AUTO-OFF WATER FLOW: No
DRAINAGE TYPE: Built-in drain
EXTERIOR: Brushed Stainless Steel
CHASSIS: Heavy Duty Galvanised Steel
DIMENSIONS: 1100(H) x 432(W) x 356(D) mm
NET WEIGHT: 45 kg
POWER SUPPLY: 220-240V, 50/60 Hz
COOLING PERFORMANCE: 106 LPH Rated Capacity & 60 LPH Base Rate (10°C in 21°C ambient temp)
FULL LOAD AMPS: 4.7A
RATED WATTS: 820 W
ENERGY SYSTEM: Refrigeration is on only when in use or if water temp increases during long period of standby
COUNTRY OF ORIGIN: Mexico
CERTIFICATIONS: ANSI/NSF 61, CABO/ANSI A117.1, ADA, CE (LVD, EMC, RoHS)
WARRANTY: 1 Year
