SNU Plus Open Vented Compact Storage Water Heaters & Taps
Description
Description
APPLICATIONS
These compact and stylish small water heaters are ideal for providing hot water to individual fixtures, such as a kitchen sink. These non-pressurised units deliver instant hot water and are compatible only with non-pressurised taps.
GENERAL INFO
SNU 5 Plus / SNU 10 Plus
A compact, easy-to-install water heater perfect for kitchens with frequent, small-scale hot water needs. The anti-drip feature (5L unit) ensures a limescale-free experience on taps and sinks, combining efficiency and convenience in one sleek package. The product has won the Red Dot Award for Product Design in 2023.

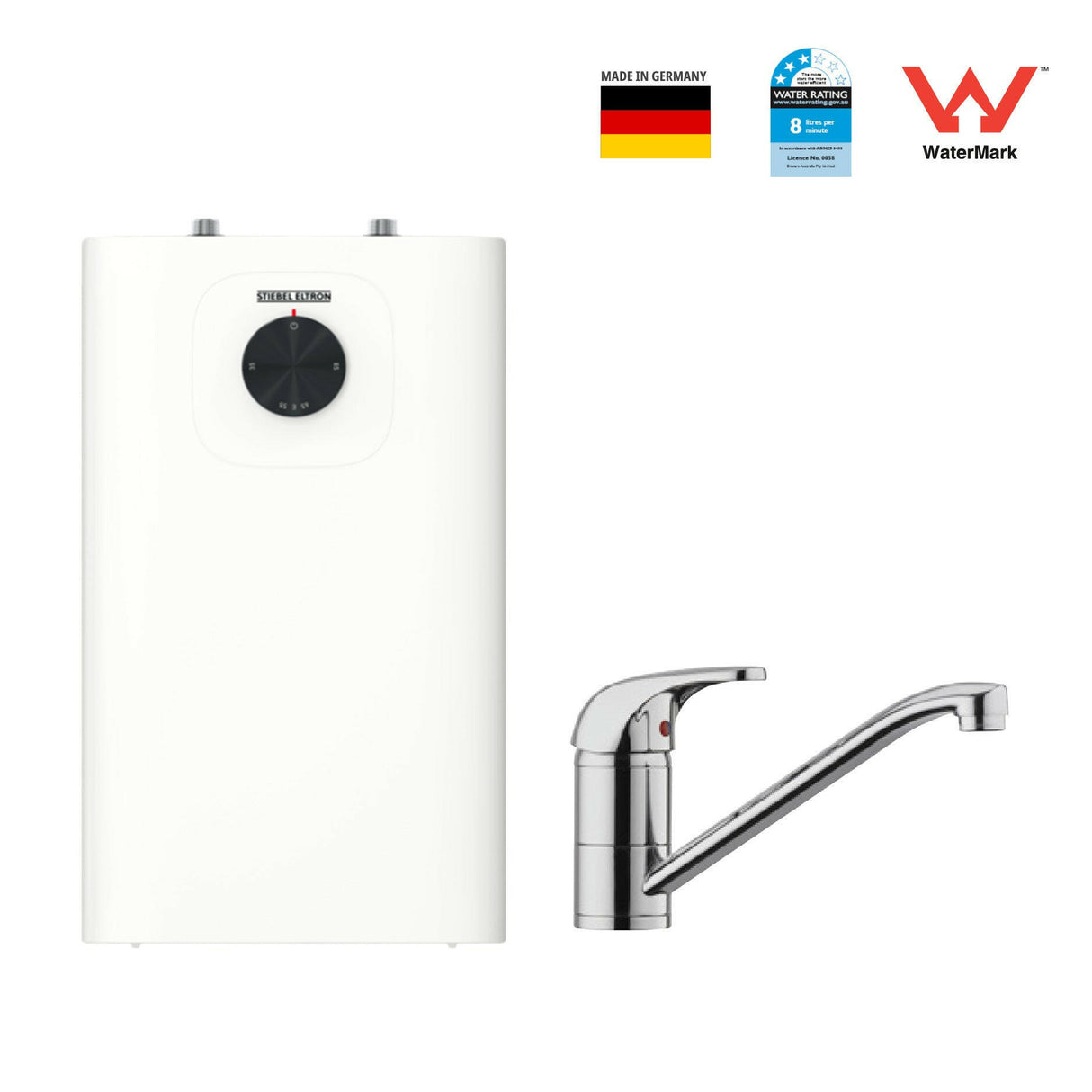

MES open vented standard single lever sink mixer to suit the SNU water heater
The MES standard single lever swivel sink mixer is suitable for use with the STIEBEL ELTRON SNU 5 and SNU 10 compact storage water heater. The open vented design of the SNU requires one of the four styles of STIEBEL ELTRON taps to be fitted with the product. The MES sink mixer has a three star WELS rating, with a maximum flow rate of 7 litres per minute.

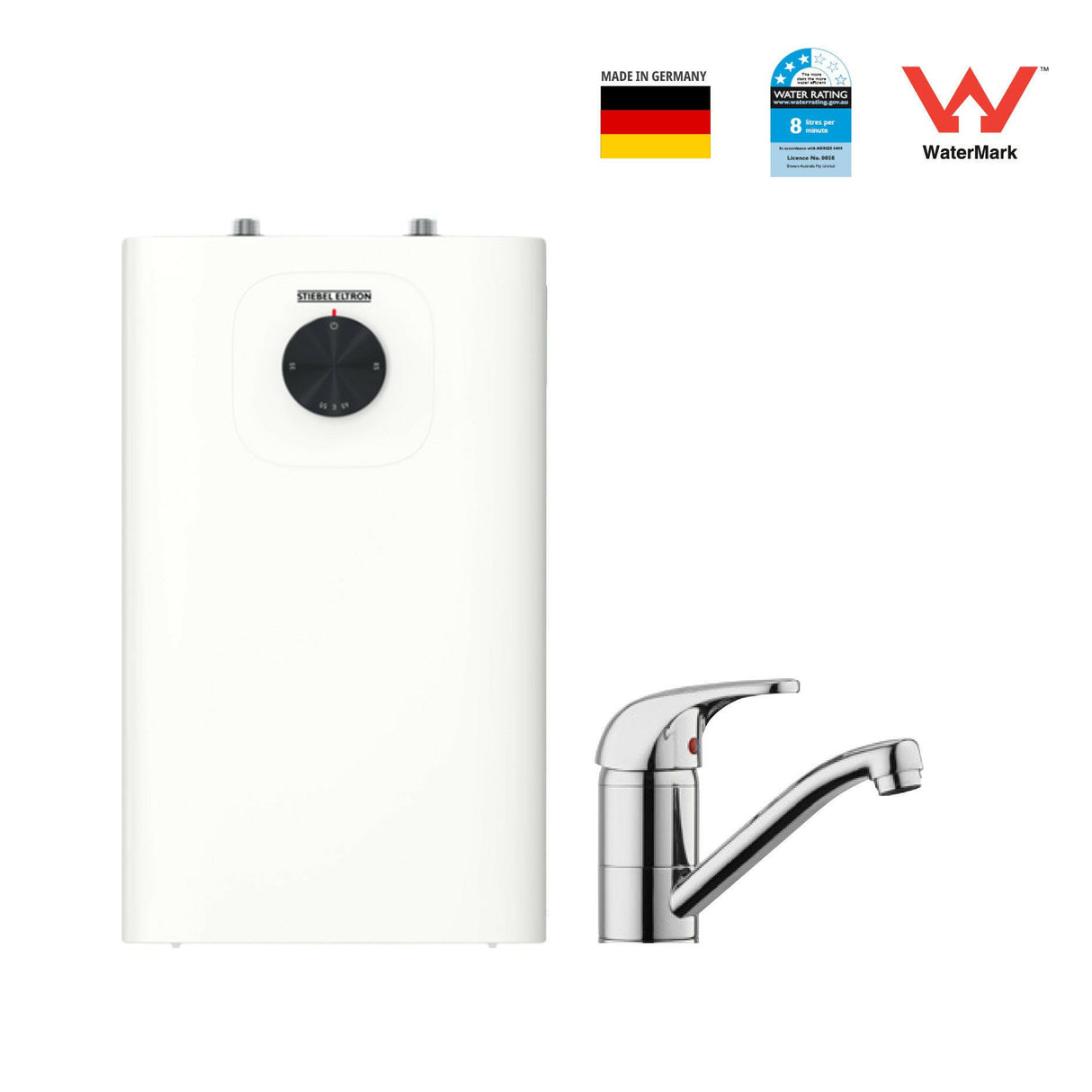

MEW open vented short spout sink mixer to suit the SNU water heater
Suitable for use with the STIEBEL ELTRON SNU 5 and SNU 10 compact storage water heater the MEW is a short spout single lever sink mixer. The SNU is an open vented water heater and requires one of the four styles of STIEBEL ELTRON taps to be fitted with the product. The MEW sink mixer is rated with a three star WELS rating. The maximum flow rate of the MEW sink mixer is 8 litres per minute.

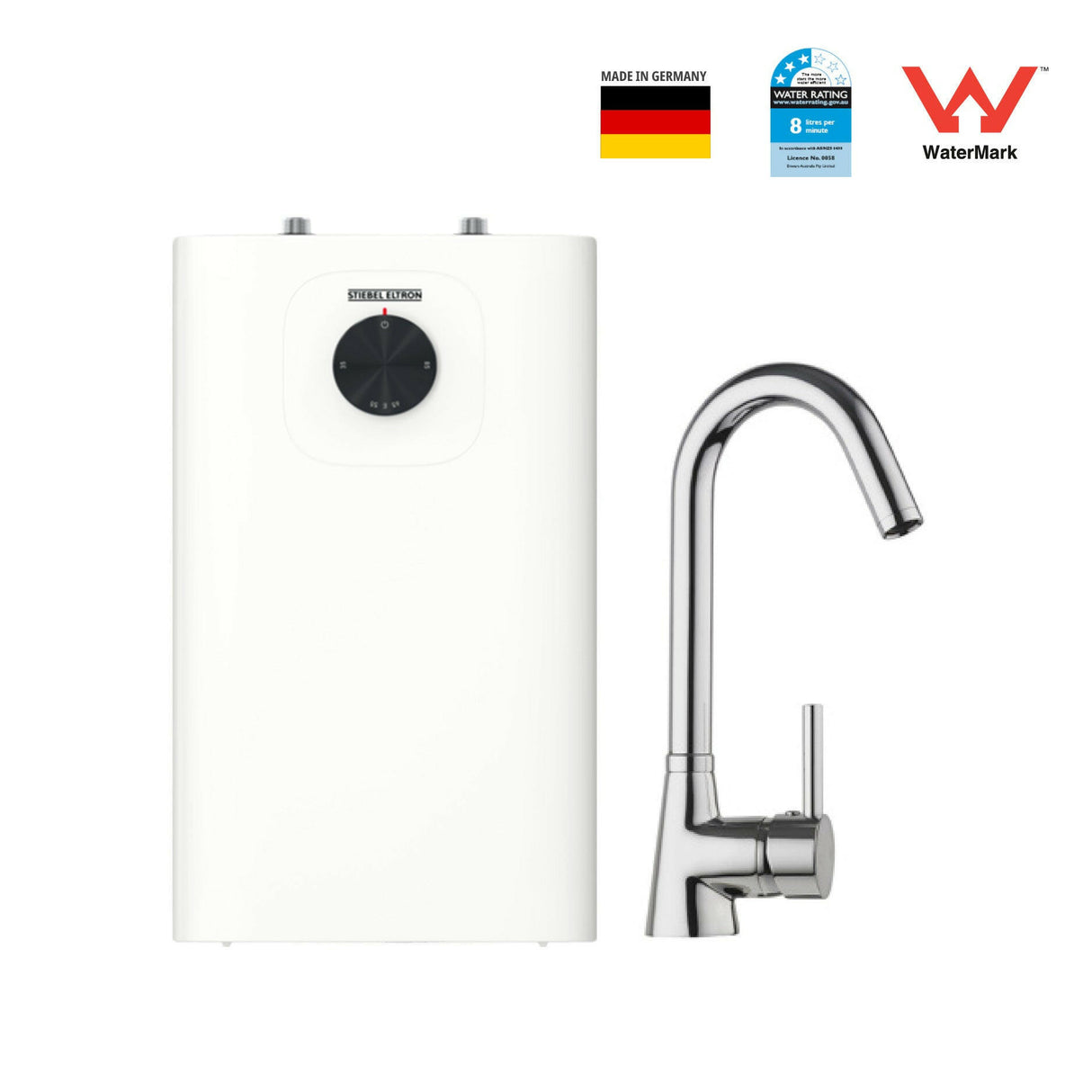

MESG open vented gooseneck sink mixer to suit the SNU water heater
The open vented design of the SNU 5 and SNU 10 single point of use compact storage water heater requires the use of one of the four styles of STIEBEL ELTRON taps to be fitted with these products. The MESG is a gooseneck single lever sink mixer. The MESG sink mixer is rated with a three star WELS rating and has a maximum flow rate of 8 litres per minute.
FEATURES | BENEFITS
Open Vented Compact Storage Water Heater:
- Designed for single isolated sink
- Save energy and water
- Low minimum standby power consumption
- To be fitted with specialised open-vented tapware
- Plug-in appliance for easy installation
MES:
- Standard spout design ideal for a range of decors
- 3 star WELS rating
- Maximum 7L/min flow rate
- Open vented design to suit the SNU water heater
- Extended lever also available (sold separately)
MES-G:
- Modern gooseneck design
- 3 star WELS rating
- Maximum 8L/min flow rate
- Open vented design to suit the SNU water heater
MEW:
- Short spout design
- 3 star WELS rating
- Maximum 8L/min flow rate
- Open vented design to suit the SNU water heater
- Extended lever also available (sold separately)
Convenience Features
The sleek casing features a stylish surface texture. The high-quality haptic rotary selector allows for precise temperature control. The 5L appliance's anti-drip function helps reduce limescale buildup and water consumption by preventing expansion water from dripping during the heating process. The water-immersed sensor ensures fast and accurate temperature detection. A four-stage temperature limit setting provides flexibility. When the appliance is turned off, an automatic frost protection feature activates. A visual indicator shows when the small water heater is in operation.
Efficiency
High-grade EPS thermal insulation surrounding the polypropylene inner cylinder minimises energy losses. The energy-saving thermostop function prevents unnecessary heating of the tap. Standby energy consumption is exceptionally low.
Installation
The Profi-Rapid installation system facilitates quick and easy installation. The compact design aligns with standard mounting points, enabling swift replacement of existing appliances. Straightforward wall mounting is accomplished using a universal mounting rail. Metal threaded water fittings enhance safety. The power cable with a standard plug features a cable storage compartment at the back of the appliance to accommodate excess cable. The unit is splashproof.
Safety
The copper tubular heater is durable and has a long lifespan. It has a resettable high limit safety cut-out for safe commissioning and mechanical temperature limit for anti-scalding protection.
Technical Data
| Model number | SNU 5 Plus | SNU 10 Plus |
| Rated output (240V) | 2.2kW | 2.2kW |
| Rated current (240V) | 9.1Amp | 9.1Amp |
| Phases | 1/N/PE | 1/N/PE |
| Electrical Installation | As per AS/NZS3000 | |
| Installation requirements | AS/NZS3500.4.2 & local requirements | |
| Type of installation | Under sink | Under sink |
| Max. tapware permissible pressure | 500 kPa | 500 kPa |
| Temperature setting range | 35 - 85°C | 35 - 85°C |
| Tank capacity | 5 Litres | 10 Litres |
| Mixed water volume at 40°C from single draw off | 10 Litres | 19 Litres |
| Standby energy consumption / 24 hours at 65°C | 0.19kWh | 0.31kWh |
| IP Rating | IP24 | IP24 |
| Height | 423mm | 503mm |
| Width | 240mm | 290mm |
| Depth | 212mm | 282mm |
| Weight | 2.9kg | 4.2kg |
| Colour | White | White |
| Approvals | WaterMark Lic No. WMKA00301, AS3498 | |
| For one draw off point | Yes | Yes |
| Please note: The SNU Plus under sink single point of use water heater is open vented and must be installed with a STIEBEL ELTRON open vented sink mixer. | ||
