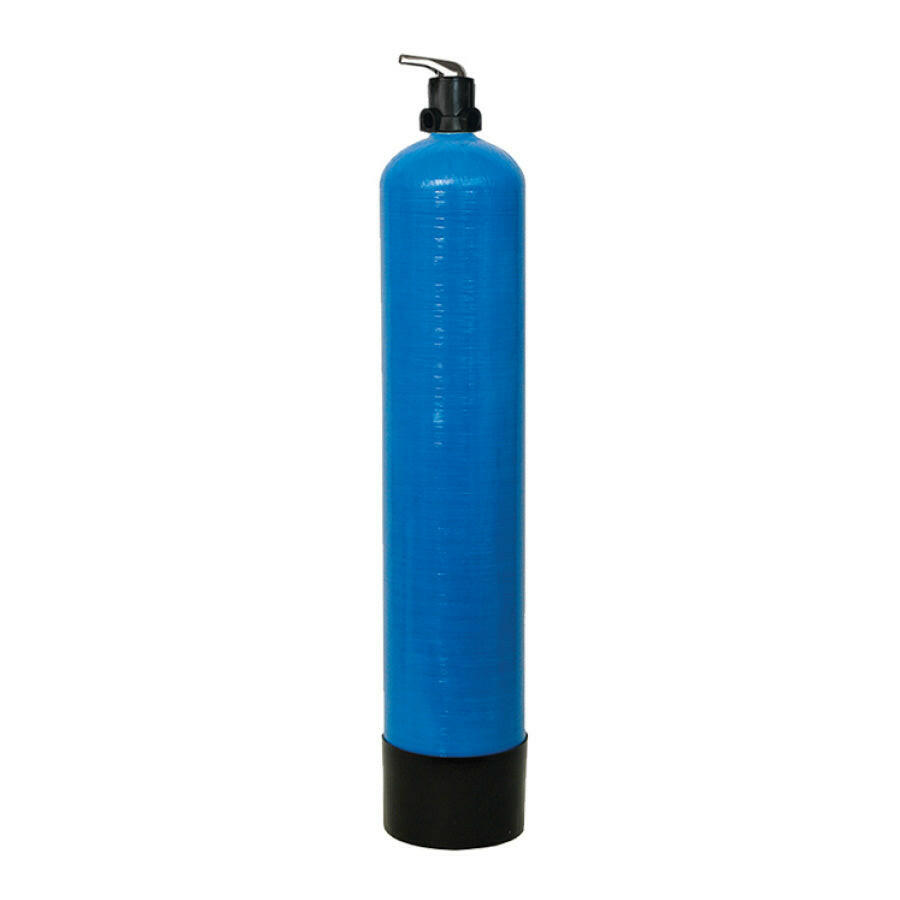

Manual Carbon High Flow Systems
Description
Description
AQUA CARBON SYSTEM EASY SELF CLEANING TECHNOLOGY
APPLICATIONS
- Residential
- Lifestyle
- Light Commercial
GENERAL INFO
Aqua Carbon Systems also known as High Flow Carbon Filters are used when it is necessary to treat all incoming water (point of entry – POE) in large volumes for the removal or reduction of a variety of contaminants from water including chlorine, tastes, odours, pesticides, volatile and organic carbons, dissolved colour and chloramines. Also used to removed Chlorine for people with sensitive skin.

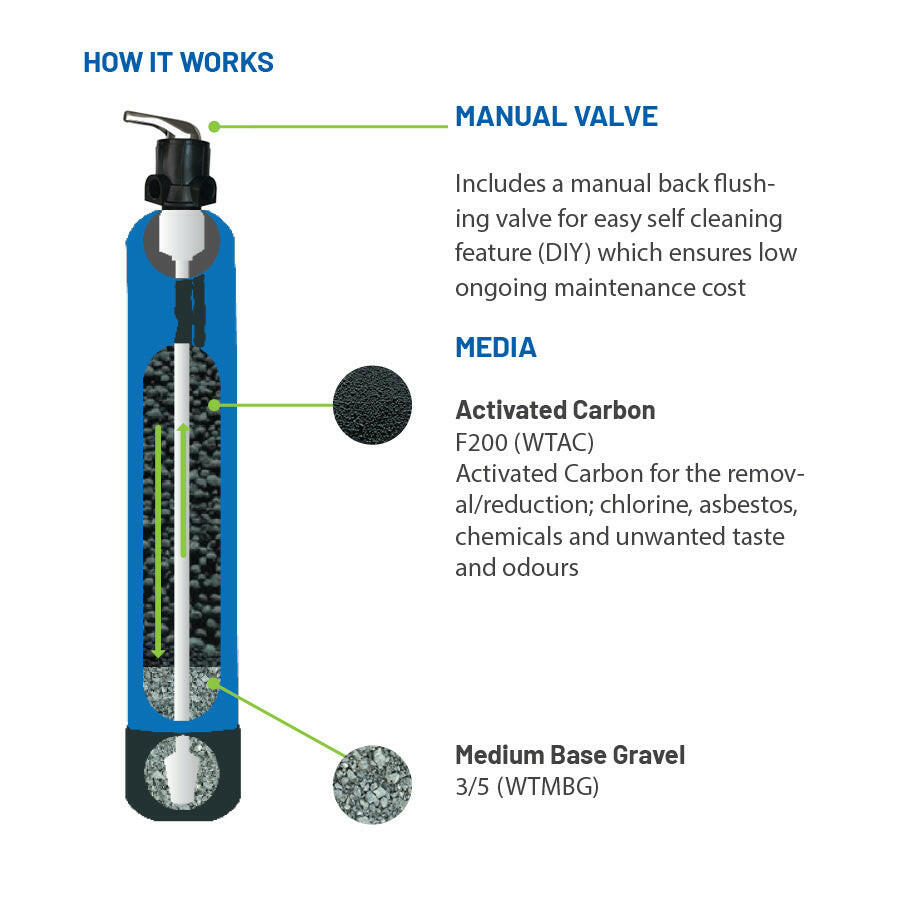

The Aqua Carbon System presents the most cost effective solution to handle the much higher flow rates and provide a longer life throughput. The system includes a manual back flushing valve for easy self cleaning feature (DIY) which ensures low ongoing maintenance cost. Discover the benefits of whole house filtration.
FEATURES | BENEFITS
- User friendly manual valve (DIY)
- Structural Polyglass Vessels have been the industry standard for quality and performance for over 30 years.
- Featuring a one-piece, seamless, high-density polyethylene liner and an encapsulated, leak-free engineered polymer inlet.
Structural Polyglass Vessels are designed to provide you with years of worry-free performance.
- Whole House Carbon filtration can improve:
- Drinking water
- Shower and Bath Water (sensitive skin)
- Personal Hygiene
- Food Preparation
- Fruit/Vegetable Garden
- Drinking water
NSF/ANSI STD. 44 DESIGN PARAMETERS
- Safety factor – 4:1
- Minimum burst at 600 psi
- Tested to 100,000 cycles without leakage
OPERATION AND MAINTENANCE
Operation and Maintenance is very simple. Backwash for 5 minutes once every week, this is done via the manual back flushing valve. Replace carbon annually or when chlorine, taste, odours or targeted contaminants start to breakthrough.
|
SPECIFICATIONS |
|||
|---|---|---|---|
|
TANK |
DESCRIPTION |
HEIGHT W/BASE MM |
CAPACITY LITRES |
|
10” DIA. |
10” x 35” with 2.5” |
1024 |
43.5 |
|
10” DIA. |
10” x 54” with 2.5” |
1383 |
62.1 |
|
12” DIA |
12” x 52” with 2.5” |
1346 |
84 |
|
OPERATING PARAMETERS |
|
|
Maximum operating pressure |
150 psi |
|
Maximum operating temperature |
48.9 °C |
|
CARBON SYSTEM |
MEDIA QUANTITIES |
||||
|---|---|---|---|---|---|
|
Code |
Description - Tank Size Inches (DxH) |
Typical Flow Rate |
Inlet/ Outlet |
Medium Base Gravel 3/5 (WTMBG) |
Activated Carbon - F200 (WTAC) |
|
“Polywound” Tanks |
Litres/ Minute |
MM |
|||
|
WHCS-1035M |
“Manual Valve” - 10” x 35” |
30 |
25mm |
8kg |
15kg |
|
WHCS-1054M |
“Manual Valve” - 10” x 54” |
40 |
25mm |
8 kg |
18kg |
|
WHCS-1252M |
"Manual Valve" - 12” x 52” |
50 |
25mm |
8 kg |
25kg |
