Next Generation Sand Filter System with Autotrol Head
Next Generation Sand Filter System For Greater Removal Of Suspended Solids
APPLICATIONS
- RO Pretreatment–superior SDI reduction
- Cooling towers–unequaled turbidity removal
- Power generation plants
-
Irrigation
- Municipal water treatment, pressure and gravity filters–higher flow, lower pressure drop, and superior filtration performance
- Wastewater polishing–exceptional TSS removal
- Precipitated metals removal
-
Carwash reclaim and recycling
GENERAL INFO

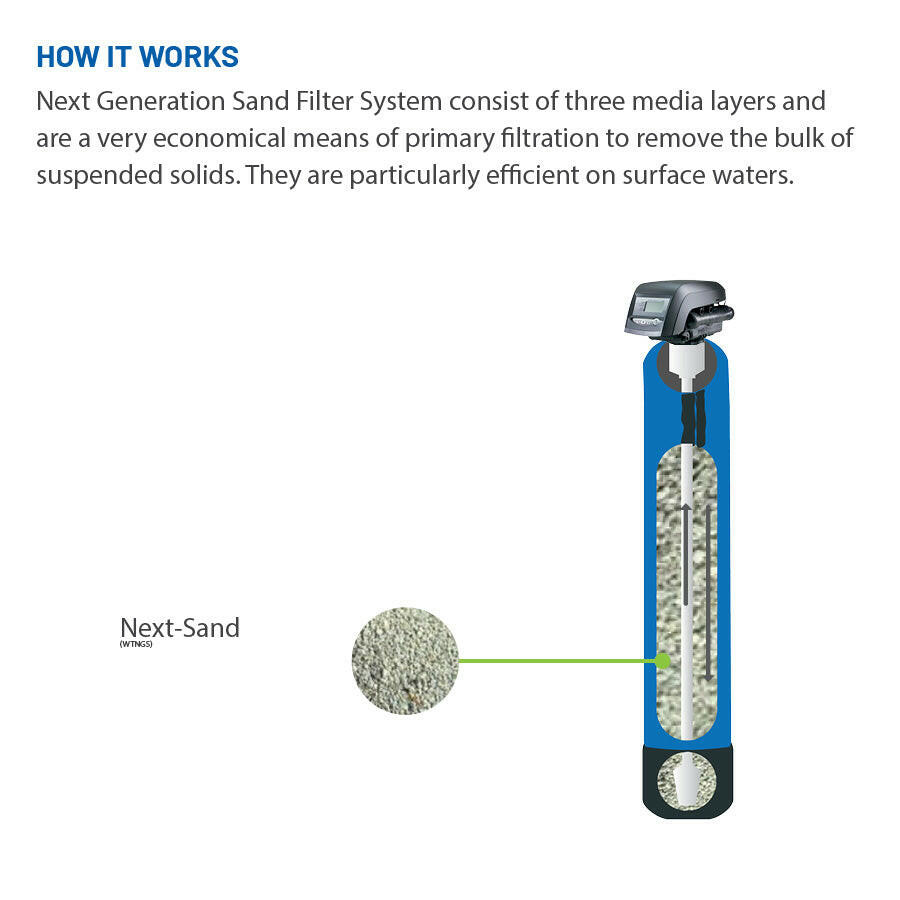

Next-Sand™ is a remarkable advance in media filtration technology. Based on a rare natural mineral that is highly processed and refined, Next-Sand™’s unique properties allow it to radically alter the performance and cost of media filtration. The hardness, stability, and micro-porous character of Next-Sand™ make it a perfect filtration media for virtually every application in the water and wastewater treatment industry.
FEATURES | BENEFITS
- High filtration performance-3-5 micron removal
- High capacity filtration throughout the entire Next-Sand™ bed depth provides more than twice the capacity of multimedia filtration
- High Service Flow– 3-4 times that of multimedia with superior filtration.
- Long-lasting media (>5 years) not consumed in the process
- Simple periodic backwash keeps the media clean and operating efficiently
STRUCTURAL® POLYGLASS TANK
Pentair® Structural Polyglass Vessels have been the industry standard for quality and performance for over 30 years. Featuring a one-piece, seamless, high-density polyethylene liner and an encapsulated, leak-free engineered polymer inlet, Structural Polyglass Vessels were designed to provide you with years of worry-free performance.
OPERATING PARAMETERS (TANK)
-
Maximum operating pressure – 150 psi
- Maximum operating temperature – 49°C
AUTOTROL® 263-268 (INTELLIGENT CONTROL VALVE)
- Time-tested Duraflow flapper provides frictionless sealing for longer service life
- Fiber-reinforced polymer valve body for superior strength and durability, non-corrosive, and UV-resistant
- Optical sensor for precision cycle positioning
- Designed with double backwash for reduced hardness leakage
- Fully adjustable 5 or 8 cycle control for an efficient and reliable water treatment system
-
Continuous service flow rate of 95LPM with a backwash of 76LP
- Backwash capability accommodates filter up to 18” in diameter
- Supercapacitor for keeping time of day during a power outage
-
Environmental protective cover for water resistance, corrosion resistance, and UV stability
-
Programming is stored in memory and will not be lost due to power outages
- History data for valve performance
Next-Sand™ FILTER SYSTEM
MEDIA QUANTITIES
Code
Description - Tank Size Inches (DxH)
Typical Flow Rate
Inlet/Outlet
Next-Sand
(WTNGS)
“Polywound” Tanks
Litres/Minute
Inches
kg
NGSA-1054
“Autotrol Head” - 10” x 54”
1”
NGSA-1252
"Autotrol Head" - 12” x 52”
1”
NGSA-1465
“Autotrol Head” - 14” x 65”
1”
NGSA-1665
“Autotrol Head” - 16” x 65”
1”
AUTOTROL HEAD
“PENTAIR” 263 Performa Filter Valve with 742F Logix Time Clock Controller
Valve Body
Glass-filled thermoplastic - NSF listed material
Rubber Components
Compounded for cold water – NSF Listed material
Operating Pressure
20-120 psi (1.38-8.27 bar)
Hydrostatic Pressure
300 psi (20.69)
Water Temperature
2°-38°C
Ambient Temperature
2°-48.9°C
Tank Thread
2-1/2” – 8, male
Inlet/Outlet Threads
1-3/4”-12 UNC-2A male
Drain Line
3/3” NPT, male
Width x Height
37.8 cm x 21.5 cm
Riser Tube Dia.
27 mm
Riser Height Above top of tank
0.5” (+/- 0.5”)
Service flow rate
5 psi (1.03 bar) drop 25.0 gpm (5.7 m3/h)
Backwash flow rate
25psi (1.72 Bar) drop 20.0 gpm (4.5 m3/h)
Service
Cv = 6.50 (Kv = 5.6)
Backwash
Cv = 4.00 (Kv = 3.5)
Controller Operating Voltage
12 volt– AC
Input Supply Frequency
50 or 60 Hz
Moter Input Voltage
12 volt– AC
Controller System Power Consumption
3 watts average
Transformer Output Voltage
12 volt– AC 400mA
Transformer Input
230 volt– AC 50/60 Hz
*Recommend use of outdoor cover for direct sunlight applications
SPECIFICATIONS
PHYSICAL PROPERTIES
Composition
High Purity Alumino-Silicate
Size
0.4-1.4 mm (approx. 14x40 mesh)
Color
Dark Gray
Surface Area
25m2/gram
Surface Absorption
Hydrophillic
Thermal Stability
Stable to 500° C
Coefficient of Uniformity
1.7
Bed Void Volume
55%
Surface Charge
Net Negative
Bulk Density
55 lbs per ft3 (0.88 kg/L)
Packaging
1 ft3 bags, 1m3 supersacks.
PERFORMANCE CHARACTERISTICS
Filtration (nominal)
3-5 micron
Surface Loading
16-20 gpm/ft2 (Typical) 12 gpm/ft2 (Optimized for silt, SDI and ultrafine particulates)
OPERATING CHARACTERISTICS
Service Flow
12-20 gpm/ft2
Backwash flow
13-22 gpm/ft2
Backwash duration
5-15 min
Backwash expansion
40-50%
Backwash frequency
Delta-P determined
Bed depth
30”-48” depending on application
OPERATION AND MAINTENANCE
Operation and maintenance are simple: Backwash for 5 - 10 minutes once every week this is done either automatically or manually. Replace media every 2-3 years.
