DEL 18 / 27 Plus 3 Phase Electric Instantaneous Water Heaters

GENERAL INFO

No other instantaneous water heater with 3i technology has such a wide range of features as the DEL Plus. It offers best-in-class comfort and convenience with a backlit multifunction display, temperature memory, and ECO mode.

With the energy and water saving ECO mode, the maximum flow rate of the DEL Plus can be limited so that a constant DHW temperature is possible even at low inlet temperatures.

FEATURES  |  BENEFITS

• Electronically controlled instantaneous water heater
• 3i technology for accurate temperature delivery
• Three-stage ECO mode for increased convenience and greater energy savings
• Backlit multifunction display with output information temperature


Product Details

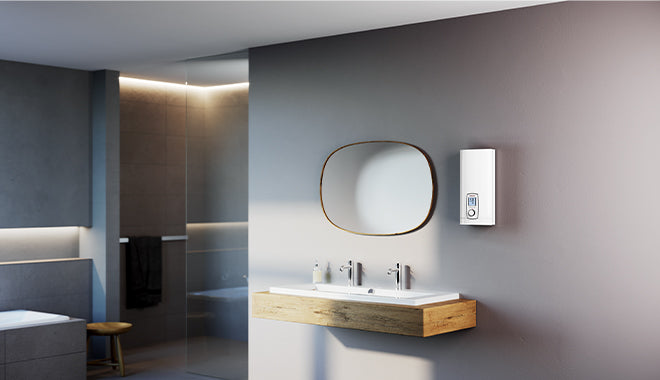

The DEL Plus is suitable for supplying hot water to several draw-off points (single and group supply), e.g. simultaneous supply to bathroom and kitchen. Sealed unvented, pressure-tested appliance for use with all commercially available pressure taps. The DEL Plus water heater requires no safe tray, flue or ventilation.

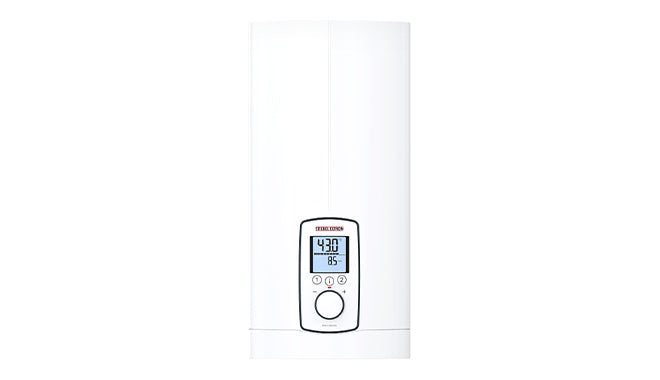

Electronically controlled instantaneous water heater with 3i technology. Accurate temperature delivery up to the maximum output. Temperature selection from 30 to 50°C via rotary selector, temperature adjustment for showers in 0.5 °C increments. Backlit multi-function display to show set temperature, current power consumption, status and service indication. Selectable ECO mode. Memory function for 2 programmable temperatures of choice. Pivoting appliance cover and programming unit for increased operating convenience in under-sink installations.

Saves energy and water by means of electronic output control with 3i technology. 3 sensors ensure that the selected temperature is accurately achieved. For this, only the actual required amount of energy is expended; there is no need to add cold water at the tap. This ensures maximum energy efficiency. ECO mode can be individually selected for economical operation. Suitable for preheated water (e.g. in solar thermal and heat pump systems).

Rapid bare wire heating system, suitable for hard and soft water. Electronic safety concept with air bubble detection.

Technical Data

Product DEL 18 Plus DEL 27 Plus Article number 236741 236742 Rated output (415V) 19.4kW 28kW Rated current (415V) 27Amp 38.9Amp Phases 3/PE 3/PE Electrical Installation As per AS/NZS3000 Installation requirements AS/NZS3500.4.2 & local requirements Switch on flow rate (minimum flow rate required to switch on the water heater) 2.5L/min 2.5L/min Permissible operating pressure 1000kPa 1000kPa Temperature adjustment 20-50°C 20-50°C IP Rating IP25 (IP24 at electrical connection finished walls) IP25 (IP24 at electrical connection finished walls) Height 466mm 466mm Width 225mm 225mm Depth 116mm 116mm Weight 3.2kg 3.2kg Colour white white Nominal capacity 0.4L 0.4L Approvals WaterMark Lic No. WMKA00301, AS3498 For one/several draw off points Yes/Yes Yes/Yes Heating system Bare wire Bare wire Accepts pre-heated water (solar) Yes (incoming water must not exceed 50°C) Programmable temperature Yes Yes
